The House

One LINE statement will be used for each for the two sides, the floor and ceiling of the house. Remember that the LINE statement looks like this:

LINE (startX, startY)-(endX, endY)

(startX, startY) is one end of the the line and (endX, endY) is the other end.

' House Picture
'

' Start Graphics

SCREEN 12

' Draw the House

'   Draw the Walls
LINE (150, 320)-(150, 200)
LINE (320, 320)-(320, 200)

'   Draw the Floor and Ceiling
LINE (150, 320)-(320, 320)
LINE (150, 200)-(320, 200)

'   Draw the Roof
LINE (150, 200)-(235, 100)
LINE (320, 200)-(235, 100)

' Draw the Tree

'   Draw the Trunk

'   Draw the Leaves

' Draw the Grass
END

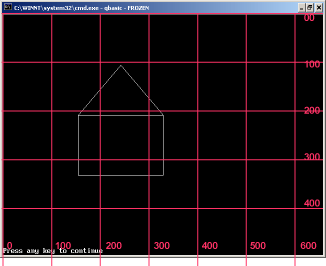

The picture shows what the program draws (in white) along with some red lines to that show the screen as graph paper. Recall that the X coordinate starts at zero at the left edge and increases going right. It ranges from 0 to 639.

The Y coordinate starts at zero at the top edge and increases going down. It ranges from 0 to 479.
