Recursive Line

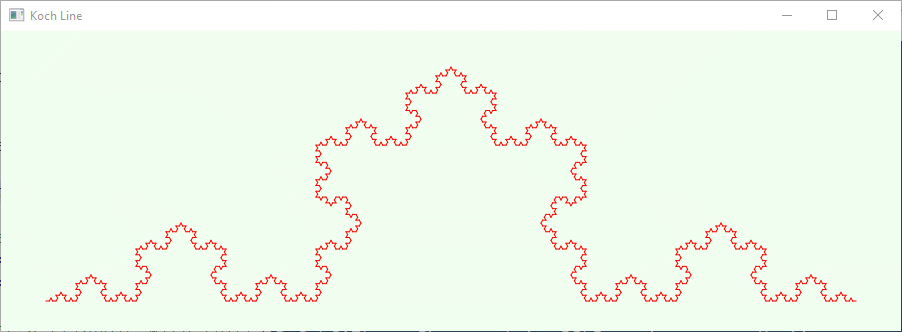

Here is a program that draws one Koch line, recursively:


import javafx.stage.*;
import javafx.scene.*;
import javafx.scene.shape.*;
import javafx.scene.paint.*;
import java.lang.Math;

class KLine extends Group
{
  final double LINELIMIT = 4 ;

  // Construct a Koch line between (x0, y0) and (x4, y4)
  public KLine( double x0, double y0, double x4, double y4 )
  {
    double x1=0, y1=0; // end of the first third
    double x2=0, y2=0; // peak of the bump in the middle
    double x3=0, y3=0; // start of the last third
    double xm=0, ym=0; // middle of the straight line
    double dist=0;     // length of this line

    double theta=0;    // angle between line and x axis
    double triHi=0;    // height of the bump

    dist = Math.sqrt( (x4-x0)*(x4-x0) + (y4-y0)*(y4-y0) );

    // If the length is below the limit
    // construct a straight line
    if( dist < LINELIMIT )
    {
      Line line = new Line( x0, y0, x4, y4);
      line.setStroke( Color.RED );
      getChildren().add( line );
    }

    // If the length is above the limit
    // construct a line with a bump in the middle
    else
    {
      // The end of the first third is the start plus
      // one third  of the displacement from start to end
      x1 = x0 + (x4-x0)/3;
      y1 = y0 - (y0-y4)/3;

      // The start of the last third is the end minus
      // one third of the displacement from start to end
      x3 = x0 + 2*(x4-x0)/3;
      y3 = y0 - 2*(y0-y4)/3;

      // The angle between this line if it were straight
      // and the x axis.
      theta = Math.atan2( (y0-y4),(x4-x0) ) ;

      // The length of the bisector of the triangle bump
      triHi = dist/(2*Math.sqrt(3));

      // Find (X2, Y2) of the vertex of the triangle
      xm = (x0+x4)/2;
      ym = (y0+y4)/2;
      double S = triHi*Math.sin( theta );
      double B = triHi*Math.cos( theta );
      x2 = xm - S;
      y2 = ym - B;

      // Construct this line out of four smaller Koch lines
      KLine lineA = new KLine( x0, y0, x1, y1 );
      KLine lineB = new KLine( x1, y1, x2, y2 );
      KLine lineC = new KLine( x2, y2, x3, y3 );
      KLine lineD = new KLine( x3, y3, x4, y4 );
      getChildren().addAll( lineA, lineB, lineC, lineD );
    }

  }
}

public class KochLine extends Application
{

  public void start(Stage stage)
  {
    double sceneWidth=900, sceneHeight=300;

    // Vertices of a triangle in the center of the screen
    double x0 = sceneWidth*0.05, y0 = sceneHeight*0.9;
    double x4 = sceneWidth*0.95, y4 = sceneHeight*0.9;

    // Construct a triangle with three Koch lines for sides
    KLine line = new KLine( x0, y0, x4, y4 );

    // Add the line to the scene
    Group  root = new Group( );
    root.getChildren().addAll( line );
    Scene scene = new Scene(root, sceneWidth, sceneHeight, Color.HONEYDEW );

    // Set the scene
    stage.setTitle("Koch Line");
    stage.setScene(scene);
    stage.show();
  }

}
