Jacks

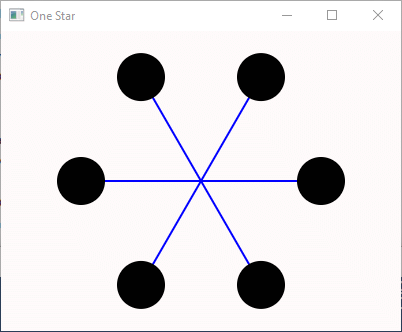

Here is a program that draws a star with a Circle at the end of each line.

Circles are drawn with their black default fill color.

import javafx.application.*;
import javafx.stage.*;
import javafx.scene.*;
import javafx.scene.shape.*;
import javafx.scene.paint.*;

public class JumpingJack extends Application
{

  void addStar( Group root, Color color, double centerX, double centerY, double size )
  {
    double startX, endX, startY, endY;

    // horizontal line
    startX = centerX - size/2;
    endX   = centerX + size/2;
    Line line = new Line( startX, centerY, endX, centerY );
    line.setStrokeWidth( 2.0 );
    line.setStroke( color );

    // circles at both ends
    Circle left  = new Circle( centerX-size/2, centerY, size*0.1 );
    Circle right = new Circle( centerX+size/2, centerY, size*0.1 );

    // make a Group of all three Shapes
    Group  grp   = new Group( line, left, right );
    root.getChildren().add( grp );   // add the group to the scene graph

    // upward slanting line
    line  = new Line( startX, centerY, endX, centerY );
    line.setStrokeWidth( 2.0 );
    line.setStroke( color );

    // circles at both ends
    left  = new Circle( centerX-size/2, centerY, size*0.1 );
    right = new Circle( centerX+size/2, centerY, size*0.1 );

    // make a Group of all three Shapes
    grp   = new Group( line, left, right );
    grp.setRotate( -60.0 );
    root.getChildren().add( grp );   // add the group to the scene graph

    // downward slanting line
    line  = new Line( startX, centerY, endX, centerY );
    line.setStrokeWidth( 2.0 );
    line.setStroke( color );

    // circles at both ends
    left  = new Circle( centerX-size/2, centerY, size*0.1 );
    right = new Circle( centerX+size/2, centerY, size*0.1 );

    // make a Group of all three Shapes
    grp   = new Group( line, left, right );
    grp.setRotate( +60.0 );
    root.getChildren().add( grp );     // add the group to the scene graph

  }

  public void start(Stage stage)
  {
    double sceneWidth=400, sceneHeight= 300;
    Group  root = new Group( );

    addStar( root, Color.BLUE, sceneWidth/2, sceneHeight/2, sceneWidth*0.6 );

    Scene scene = new Scene(root, sceneWidth, sceneHeight, Color.SNOW );
    stage.setTitle("One Star");
    stage.setScene(scene);
    stage.show();
  }

}

The same trick is used here as with the barbell: a horizontal group is made of a line with circles at both ends. Then the whole group is rotated about its center (except for the one that stays horizontal) and added to the scene graph.

Also: the reference variables line, left, right, and grp are repeatedly used to point to newly created objects. The statement

grp = new Group( line, left, right );

creates a new Group with different objects each time. Even though the variable names are the same, there are new objects each time.

Answer:

Jacks

QUESTION 17:
