Polyline

A Polyline shape is a sequence of connected line segments. The end of one line segment is the beginning of the next. This is just like a Polygon, except the first and last points are not connected.

The Polyline constructor looks just like that for Polygon:

public Polyline(double... points)

The parameters are the endpoints of the polyline as a comma-separated list, each vertex as two X Y values, with the endpoints in sequence. The number of lines of the polyline is the number of endpoints minus one.

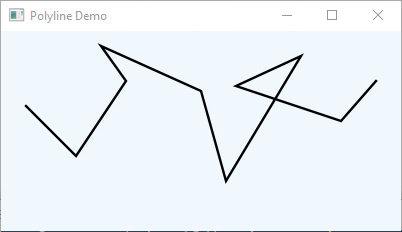

Here is the code that draws the above polyline:

import javafx.application.*;
import javafx.stage.*;
import javafx.scene.Scene;
import javafx.scene.shape.*;
import javafx.scene.paint.*;
import javafx.scene.layout.*;
import java.util.Scanner;

public class PolylineDemo extends Application
{

  public void start( Stage primaryStage )
  {
    double sceneWidth = 400.0, sceneHeight = 200.0;

    // array of vertices x,y, x,y, x,y
    double[] vertices =
    { 25,75, 75,125, 125,50, 100,15, 200,60, 225,150, 300,25, 235,55, 340,90, 375,50 };

    Polyline line = new Polyline( vertices );
    line.setStroke( Color.BLACK );
    line.setStrokeWidth( 2.4 );

    Pane pane = new Pane( line  );
    Scene scene = new Scene( pane, sceneWidth, sceneHeight, Color.ALICEBLUE);

    primaryStage.setTitle("Polyline Demo");
    primaryStage.setScene( scene );
    primaryStage.show();
  }
}

double sceneWidth = 200.0, sceneHeight = 200.0;
double w = sceneWidth, h = sceneHeight;

// array of vertices x,y, x,y, x,y, x,y
double[] vertices =
{ , , , , , , ,   };

Polyline line = new Polyline( vertices );
