double radius = 100.0,
           yCenter = radius*3/2,
           xCenter = radius*3/2 ;
    Circle circle = new Circle( xCenter, yCenter, radius);
    circle.setFill(  Color.YELLOW );
    circle.setStroke( Color.DARKCYAN );

    Pane pane =   new Pane( circle );
    Scene scene = new Scene( pane, radius*3, radius*3, Color.GHOSTWHITE );

    double radius = 100.0,
           yCenter = radius*5/4,
           xCenter = radius*5/4 ;
    Circle circle = new Circle( xCenter, yCenter, radius);
    circle.setFill(  Color.YELLOW );
    circle.setStroke( Color.DARKCYAN );

    Pane pane =   new Pane( circle );
    Scene scene = new Scene( pane, radius*5/2, radius*5/2, Color.GHOSTWHITE );

Scene Graph

Part of the job of start() is to create a scene graph. This is a data structure that organizes the Nodes of the Application. Nodes are the Shapes, GUI controls, Panes and several other types of objects. We have already seen Circle which is a kind of Shape.

Here (again) is the code that creates the scene graph for the previous program:

import javafx.application.*;
import javafx.stage.*;
import javafx.scene.Scene;
import javafx.scene.Group;
import javafx.scene.layout.*;
import javafx.scene.shape.*;
import javafx.scene.paint.*;

public class CircleDarker extends Application
{
  public void start( Stage primaryStage )
  {
    Color  myFill    = new Color( 0.9, 0.7, 0.9, 1.0 );

    double rad = 50.0, yCenter = rad*3/2, xCenter = rad*3/2, shift = rad ;
    Circle circleA = new Circle( xCenter, yCenter, rad);
    circleA.setFill( myFill );
    circleA.setStroke( Color.PURPLE );

    xCenter += shift;
    myFill = myFill.darker();
    Circle circleB = new Circle( xCenter, yCenter, rad);
    circleB.setFill( myFill );
    circleB.setStroke( Color.PURPLE );

    xCenter += shift;
    myFill = myFill.darker();
    Circle circleC = new Circle( xCenter, yCenter, rad);
    circleC.setFill( myFill );
    circleC.setStroke( Color.PURPLE );

    Pane pane =   new Pane( circleA, circleB, circleC );
    Scene scene = new Scene( pane, rad*5, rad*3, Color.AQUA.brighter() );

    primaryStage.setTitle("Darker Circles");
    primaryStage.setScene( scene );
    primaryStage.show();
  }
}

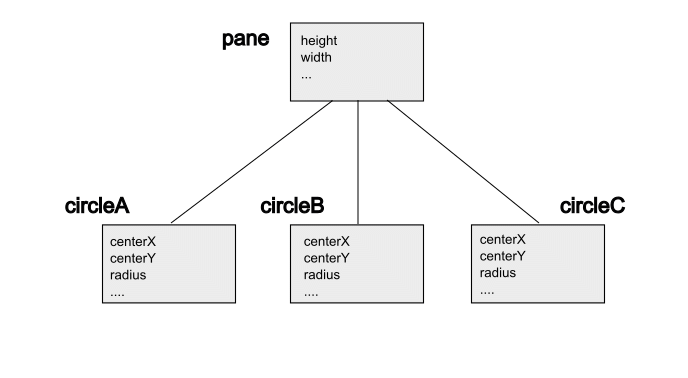

Here is the scene graph that it creates:

In this scene graph, the root node is a Pane referenced by the variable pane. The three Circles are children of the root node.

In general (in more complex scenes), a node in the graph has one parent and may have several children. No node has more than one parent. A root is the node that has no parent. (You may recognize this as a tree data structure.)

The Java run time system uses the information the the scene graph to draw the window on the monitor screen.
