Answer:

The language consists of the single string abc.


A New Input String

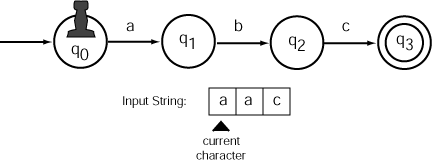

Diagram of an automaton

The example automaton (above) has a new input string. The automaton always starts in the start state and the input string always starts with the first character.


QUESTION 9:

Is the new string accepted by the automaton?
