Answer:
See below.
See below.

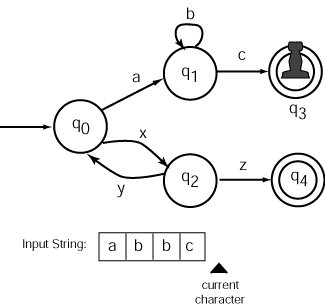

The automaton reached the final state when it consumed the final character of the string. So the string "abbc" is accepted by this automaton.
Which of the following strings are accepted by the automaton?
